Cub Cadet Pro Z 760 S 53TIHTUVA50

SET UP AND PREP FEES MAY APPLY

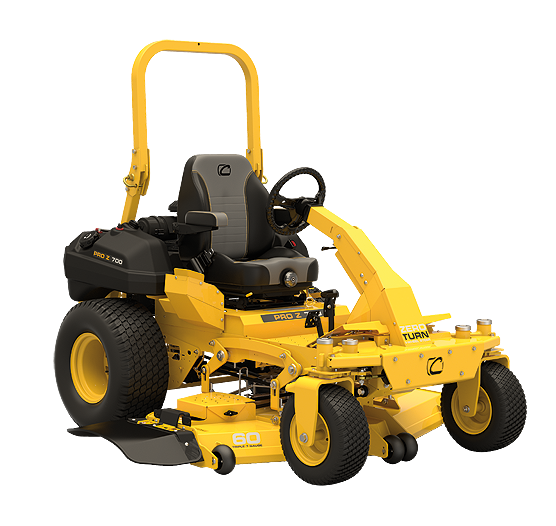

The Cub Cadet® PRO Z 760 S 60-in. 31 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.
31 HP Kawasaki FX921v (999cc) engine and 12cc Hydro-Gear 4400 transmission
60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty
Engine
Engine Brand: Kawasaki
Engine Model: FX921V
Engine Displacement: 999cc
Engine Output: 31 HP
Fuel Tank Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
Drive System
Transmission: 12cc Hydro-Gear 4400
Forward Speed: 12 mph
Reverse Speed: 6 mph
Cutting Deck
Deck Cutting Width: 60”
Deck Material: fabricated 7ga. (.187”) steel shell
Deck Engagement (PTO): electronic fingertip engagement pto
Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
Spindle Construction: 8″ sealed cast aluminum housing (maintenance-free)
Blade(s): Triple-blade / High-lift blade (standard) Marbain Blade
Cutting Height Range: 1″ – 5″
Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
Deck Positions: Foot pedal with spring assist 16 Positions
Chassis
Frame: Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
Front Axle(s): 2″ x 3″ solid axle tube with ISO dampening suspension
Front Tires: 16″ x 6.5″ – 8″ turf
Rear Tires: 24″ x 12″ – 12″ (Turf Tread)
Tire Tread: Turf Tread
ROPS: 2″ x 2″ spring-latch tool-less foldable 3 position
Bumper: 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Yokes: 1/2″ thick steel front yokes
Controls
Seat: Cushion with seat belt
Brakes: Hand-operated lever with integrated hydro pump release lever
Steering Wheel Control: High Performance Steering Wheel with electronic power steering & Foot-pedal ControL
Comfort
Arm Rests: padded arm rests
Seat Suspension: High-back dial suspension with EVC cushion, ISO mounted base (lateral suspension)
Seat Adjustment: angle back adjust and lumbar support
Dimensions
Dimensions: L/W/H 86″ L x 62″ W x 52″ H
Weight (approx.): 1562 lbs.
Additional Specifications
Hour Meter: Standard electronic
Discharge Chute: High-density, impact-resistant rubber
Cup Holder: Intergrated into Side Pod
Model Number: 53TIHTUVA50
Warranty
Commercial Warranty:
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
AIR FILTER: KM-11013-7044
PRE FILTER: KM-11013-7045
OIL FILTER: KM-49065-0724
FUEL FILTER: KM-49019-0027 OR 490-240-0001
SPARK PLUG: KM-BPR5ES
DECK BELT: 954-04319
PTO BELT: 954-05128
DRIVE BELT: 754P07148
BLADES: 942-04415 OR 490-110-C163
XTREME BLADE: 02005019P-X
IGNITION KEY: 925-06908
TRANS FILTER:
TRANS FLUID:
ENGINE OIL: 490-000-C044
