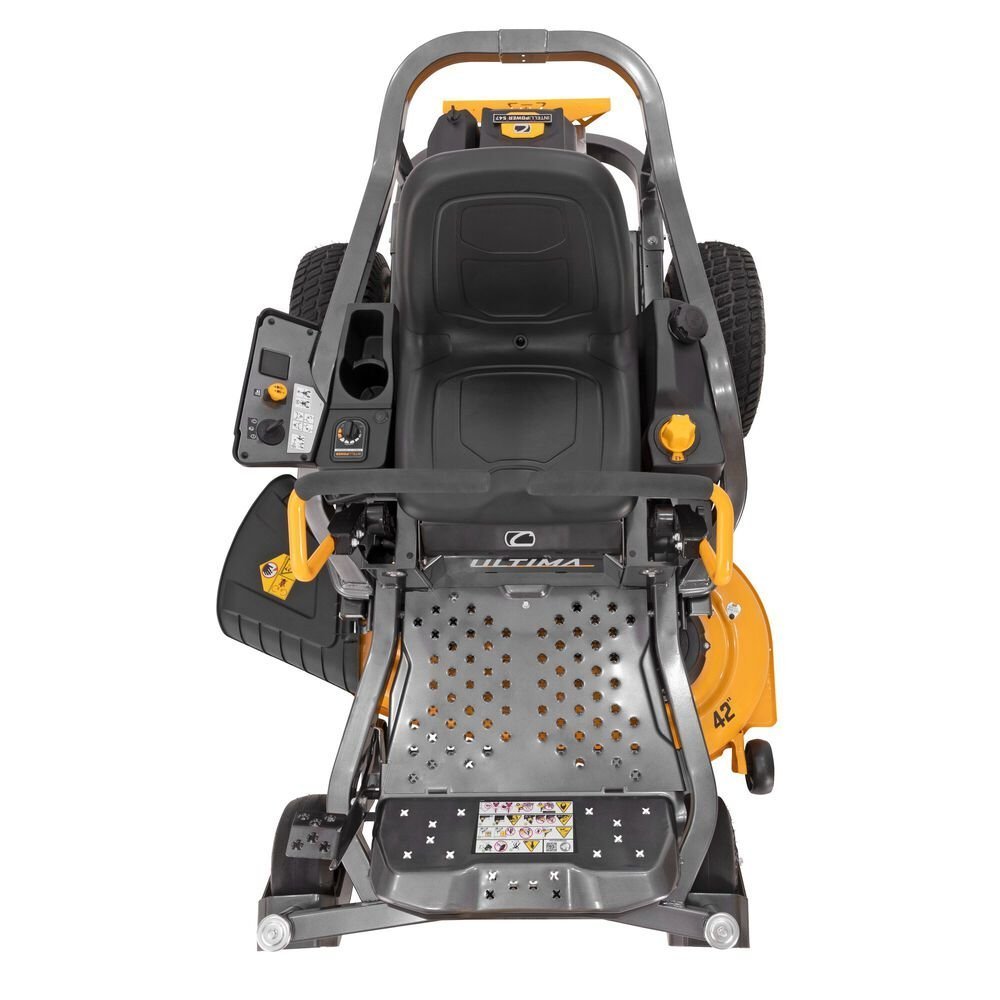

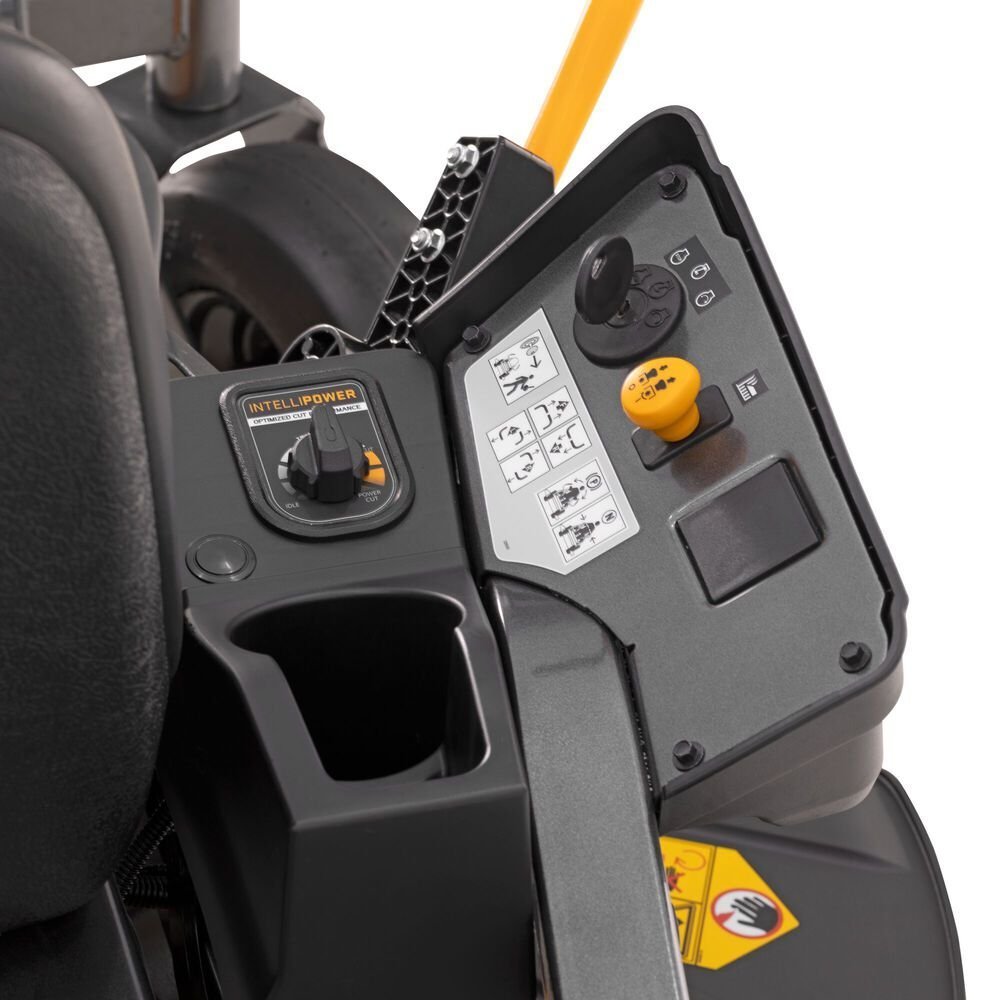

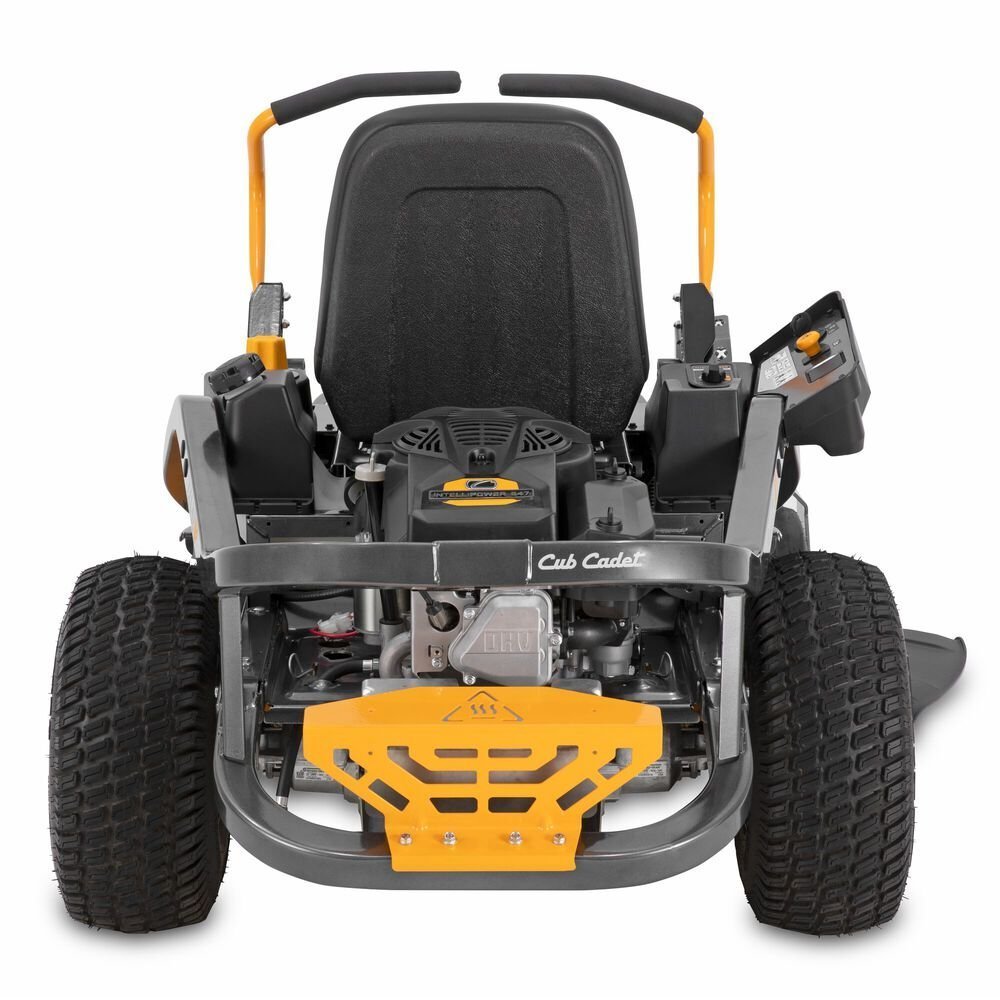

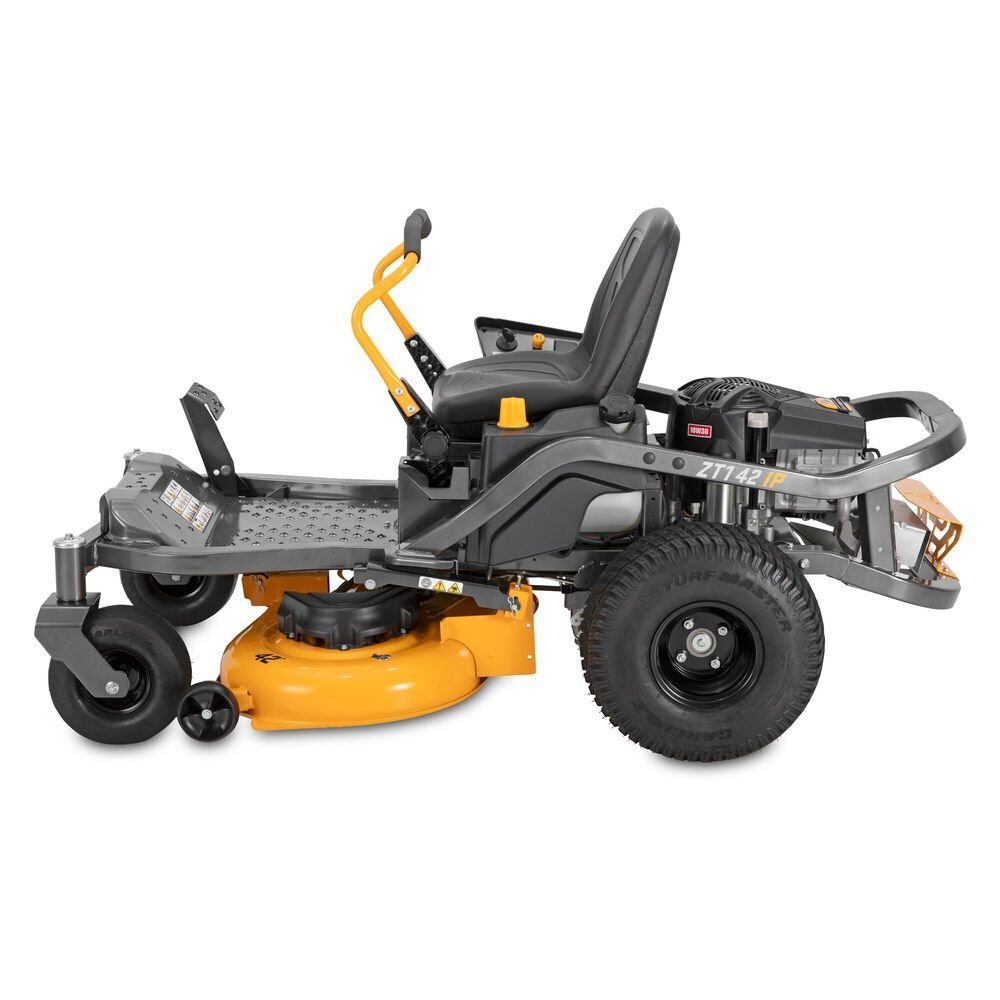

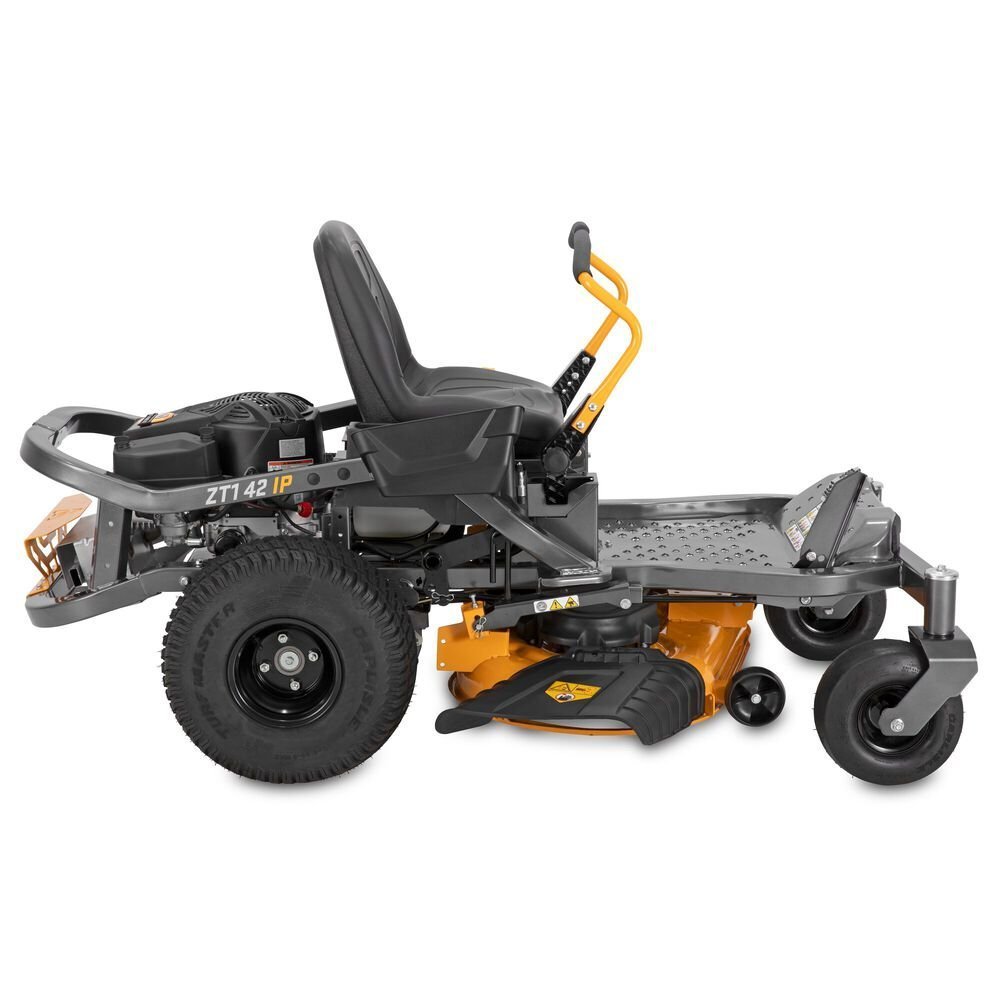

Cub Cadet ULTIMA Z1 42IP 17RLEACS010

SET UP AND PREP FEES MAY APPLY
Z1 42IP
The Ultima Series Z1 42IP 42-in. 547cc Zero-Turn Lawn Mower With IntelliPOWER® is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. IntelliPOWER® Technology delivers up to 18% more available power*, resulting in less bogging down when mowing in challenging conditions like tall, thick, or wet grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

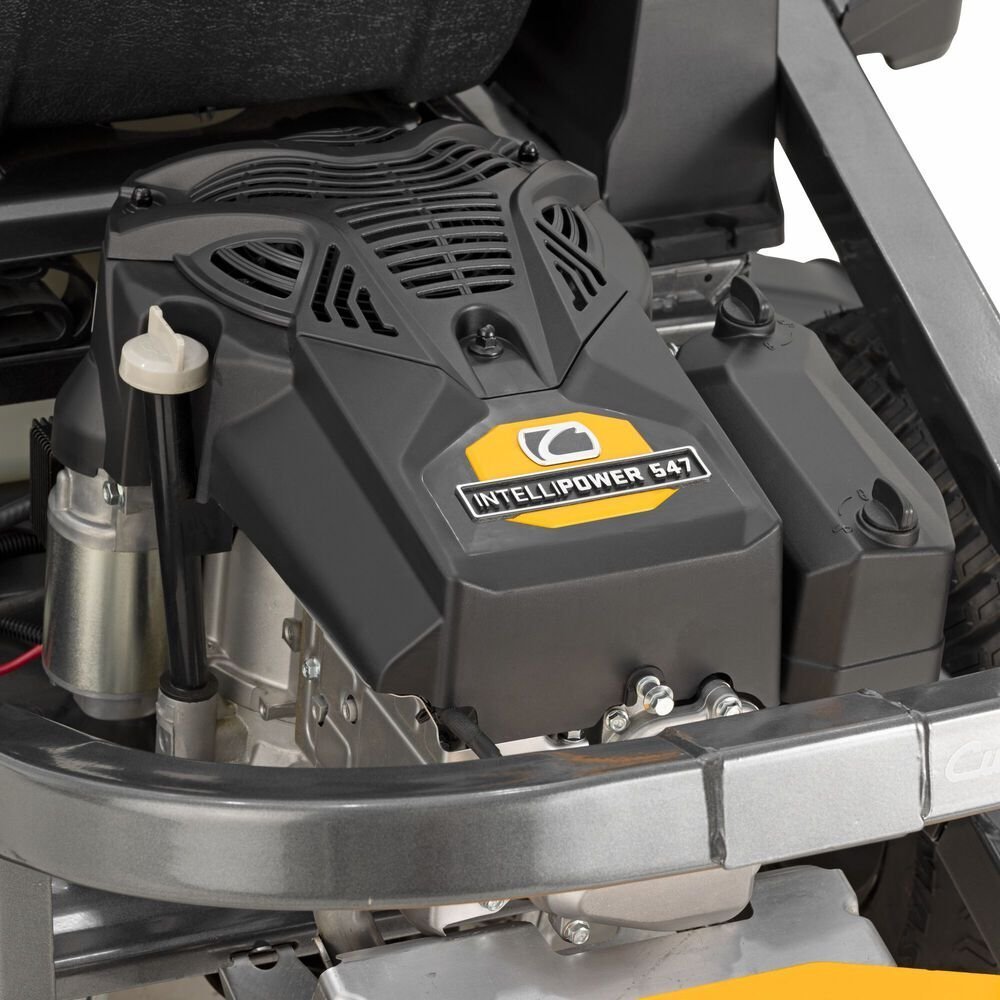

Engine
Engine Brand: Cub Cadet®
Engine Model: IntelliPOWER
Engine Model Number: AX90Z0
Engine Displacement: 547cc
Engine Output:
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Single
Engine Start: Ignition Key
Engine Oil Capacity: 1.8 qts. US (1.7 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Electronic
Choke: Electronic
Air Filter: Dual element
Oil Filter: Yes
Fuel Delivery: Carburetor
Battery
Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V
Drive System
Transmission: Hydro-Gear EZT 2200
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic
Cutting Deck
Deck Cutting Width: 42 in
Deck Wash: Yes
Deck Material: 13-gauge steel
Deck Engagement: (PTO) Electric
Deck Construction: Stamped
Blade(s): Two
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1” – 4.5”
Anti-Scalping: Two gauge wheels
Deck Positions: 15
Warranty
Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: 3 Year Limited
Chassis
Frame: 2” x 2” tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: No
Corrosion Protection: Yes
Controls
Cruise Control: No
Steering Control: Lap Bars
Comfort
Seat Type: 18″ high back
Armrests: No
Seat Adjustment: Knob
Wheels
Rear Tires: 20”x 8”-8″
Front Tires:11″x 6″-5″
Additional Specifications
Hour Meter: No 490-900-C075
Headlight(s): No
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number: 17RLEACS010
AIR FILTER: 937-05066
OIL FILTER: 951-12690
FUEL FILTER: 751P22912
SPARK PLUG: 951-10292A
DECK BELT : 754P06134 OR 490-501-C081
DRIVE BELT: 954-04317A OR 490-501-C069
BLADES: 742P05528
XTREME BLADES: 742P05177A-X OR SET 490-110-C202
IGNITION KEY: 925-1745A
HOUR METER KIT: 490-900-C075
