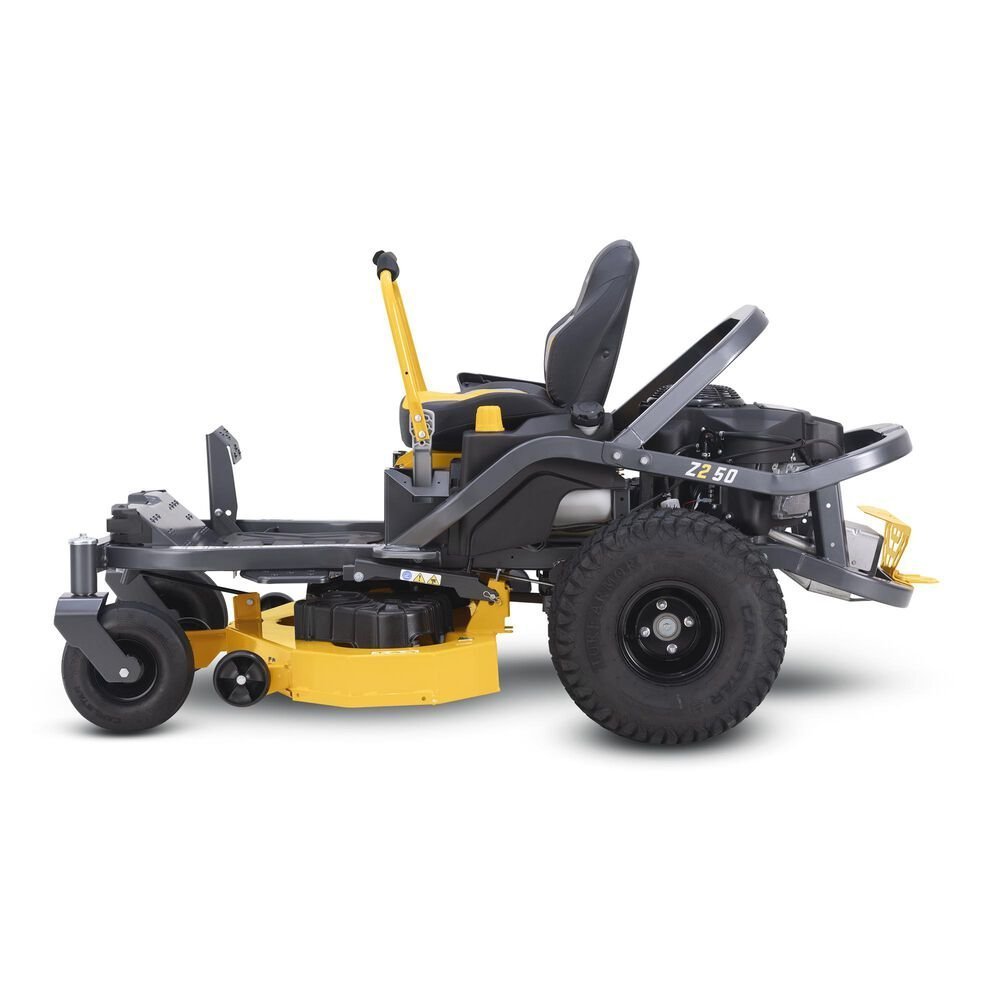

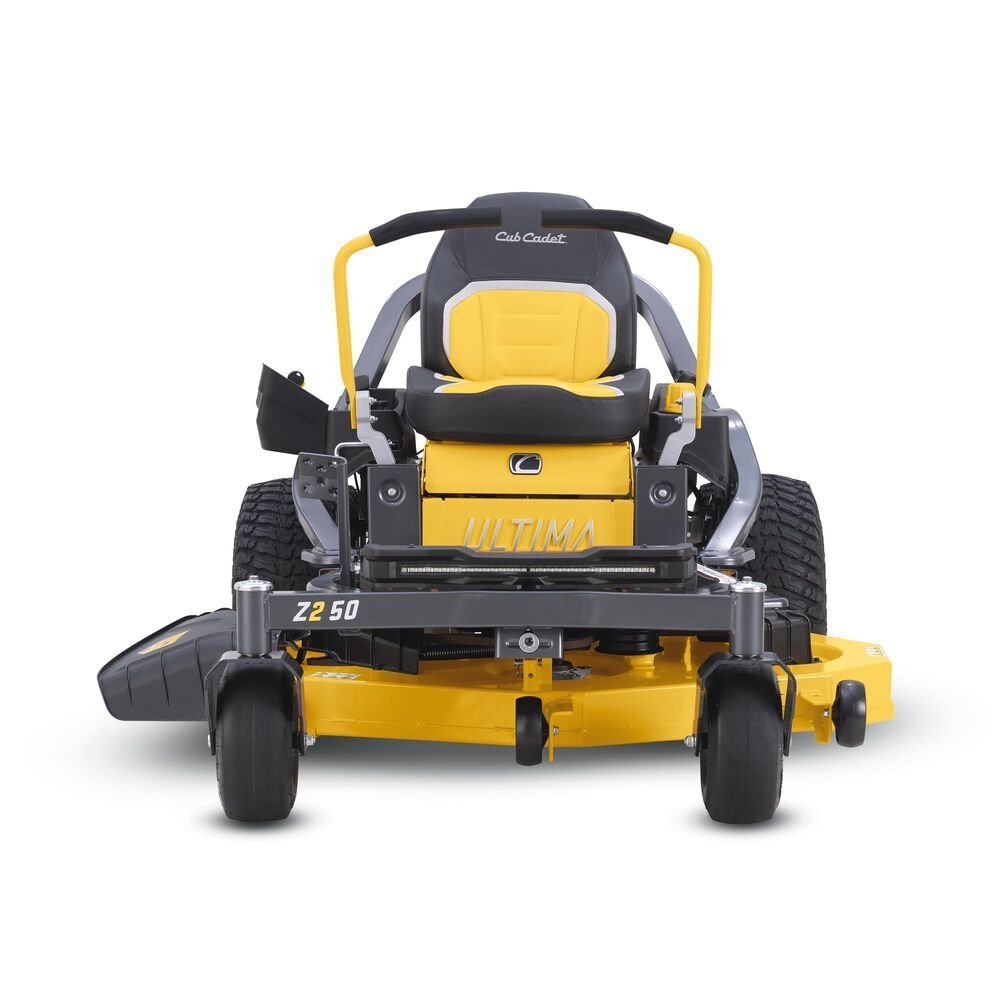

Cub Cadet ULTIMA Z2 50″ 17RIEAEL010

SET UP AND PREP FEES MAY APPLY
Z2 50″
The Cub Cadet® Ultima Series Z2 50 50-in. 23 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver uncompromised performance, durable strength, and proven results. Built with premium comfort features engineered to provide the ultimate mowing experience this mower helps you tackle hills and slopes up to 15-degrees. Save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 23 HP*/726cc Kawasaki® Engine.
An AeroForce™ welded, heavy-duty fabricated deck delivers a signature cut with few clumps and stragglers, fine clippings and evenness.
Protect against wear and tear while being the envy of your neighborhood with a continuous, 2×2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain
Mow comfortably with 20 in. high back, luxury seat bolstered using custom foam designed to minimize vibration.
Engine
Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 691V
Engine Displacement: 726cc
Engine Output: 23 HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qts. US
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor:Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor
Battery
Battery: 230 CCA
Battery Type: Lead Acid
Battery Voltage: 12V
Drive System
Transmission: Hydro-Gear EZT 2200
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic
Cutting Deck
Deck Cutting Width: 50 in
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement: (PTO) Electric
Deck Construction: Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1” – 4.5”
Anti-Scalping: Two gauge wheels
Deck Positions: 15
Warranty
Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime Limited
Chassis
Frame: 2” x 2” tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Controls
Cruise Control: No
Steering Control: Lap Bars
Handle Grip(s): Ergonomic Overmolded Soft Touch
Brakes: Disc
Comfort
Seat Type: 20″ Cut-and-Sew with Head Bolster
Armrests: No
Seat Adjustment: Knob
Wheels
Rear Tires: 20”x 8”-8″
Front Tires:11″x 6″-5″
Tire Tread: Turf Armor
Additional Specifications
Hour Meter: Yes
Headlight(s): LED Lightbar
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number:17RIEAEL010
AIR FILTER: KM-11013-0752
OIL FILTER: KM-49065-0736
FUEL FILTER: KM-49019-0031
SPARK PLUG: KM-BPR4ES
DECK BELT : 954-05078 OR 490-501-F070
DRIVE BELT: 954-04317A OR 490-501-C069
BLADES: 742P05094
XTREME BLADES: 742P05094-X
IGNITION KEY: 925-1745A
HOUR METER KIT:
