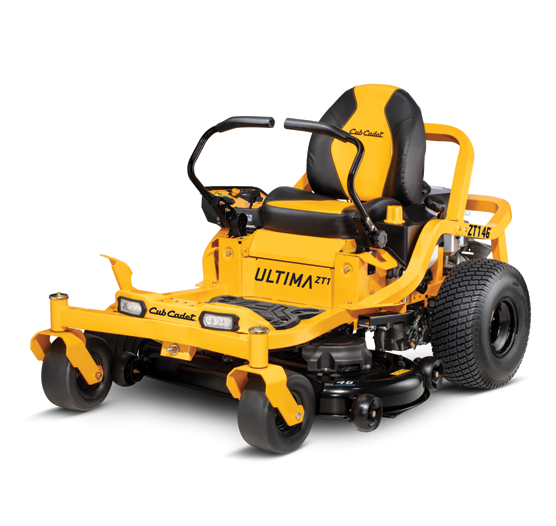

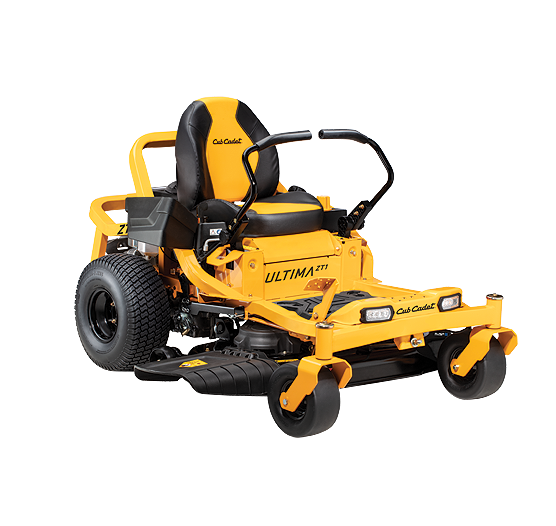

CUB CADET ULTIMA ZT1 46 FAB 17RIEACN010

SET UP AND PREP FEES MAY APPLY
ZT1 46
A 21.5 HP/726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
Engine
Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 651V
Engine Displacement: 726cc
Engine Output: 21.5HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.0 qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Dual element
Oil Filter: Yes
Fuel Delivery: Carburetor
Battery
Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V
Drive System
Transmission: Hydro-Gear EZT 2200
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic
Cutting Deck
Deck Cutting: Width 46″
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement: (PTO) Electric
Deck Construction: Fabricated
Blade(s): 2
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1” – 4.5”
Anti-Scalping: 2 gauge wheels
Deck Positions: 15
Warranty
Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: No
Chassis
Frame: 2” x 2” tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Controls
Cruise Control: No
Brakes: Disc
Steering Control: Lap Bars
Comfort
Seat Type: 20″ high back
Armrests: No
Seat Adjustment: Knob
Front Caster Suspension: No
Wheels
Rear Tires: 20”x 8”-8″
Front Tires: 11″x 6″-5″
Tire Tread: Turf Master / Multi Trac
Additional Specifications
Hour Meter: No 490-900-C075
Mulch Kit: Available separately
Headlight(s): Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number: 17AIEACNA10, 17RIEACN010
AIR FILTER: KM-11013-0752
OIL FILTER: KM-49065-0721
ENGINE OIL: 490-000-C044
FUEL FILTER: KM-49019-0031
SPARK PLUG: KM-BPR4ES
DECK BELT: 754P06135 OR 490-501-C082
DRIVE BELT: 954-04317A
BLADES : 742P05510 OR SET 490-110-C192
XTREME BLADES: 742P05510-X OR SET 490-110-C203
IGNITION KEY: 925-1745A
HOUR METER KIT: 490-900-C075
