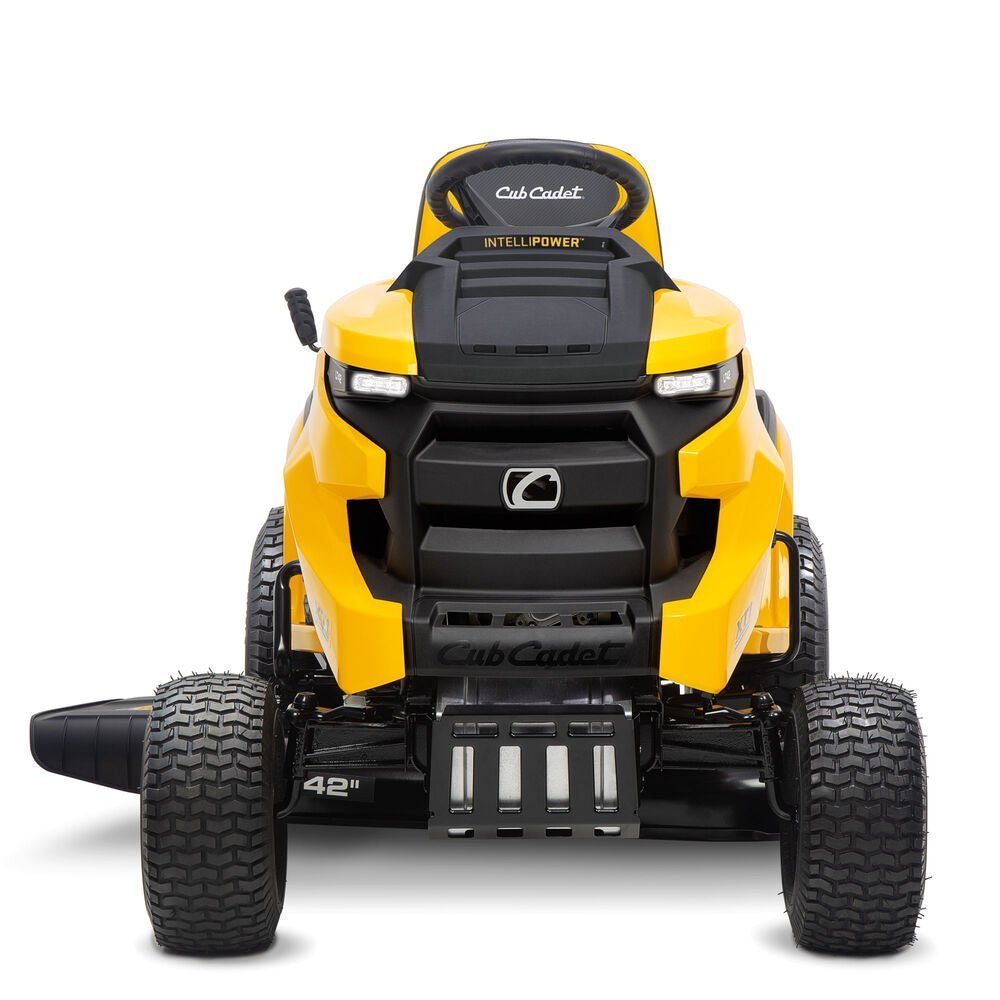

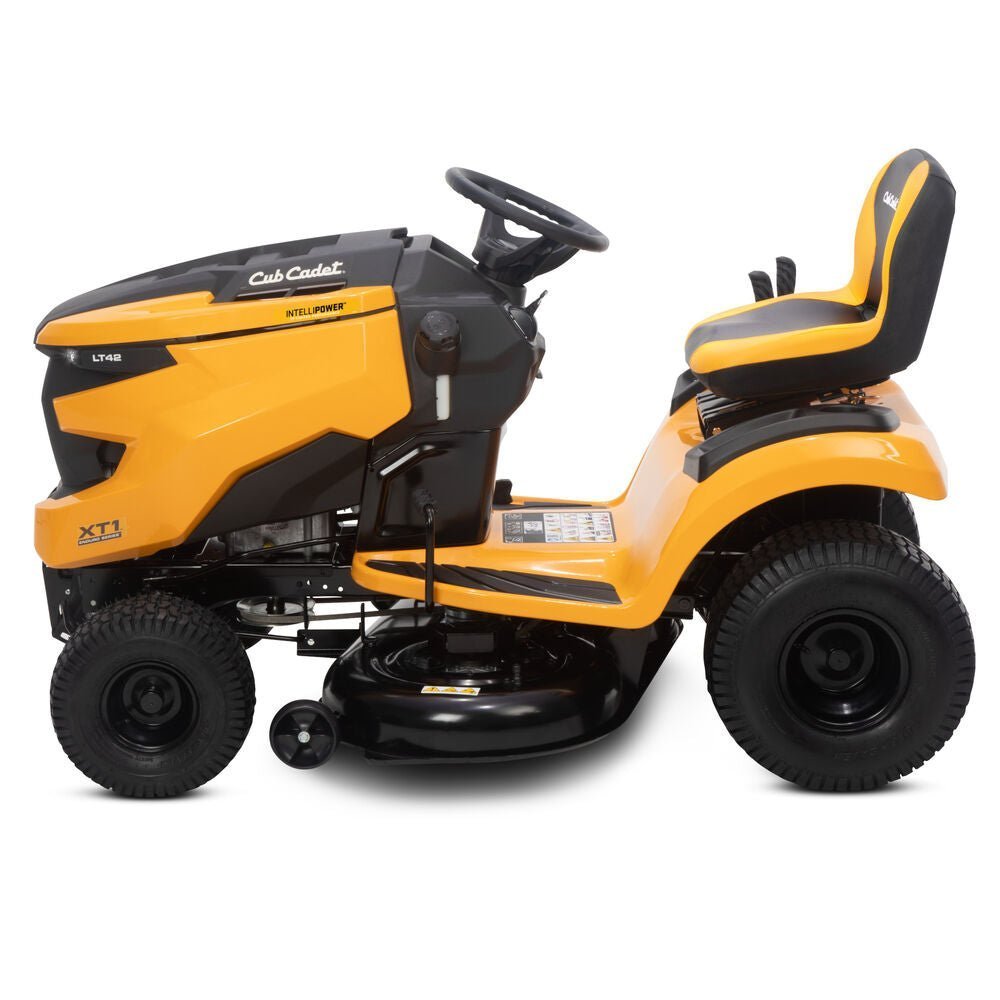

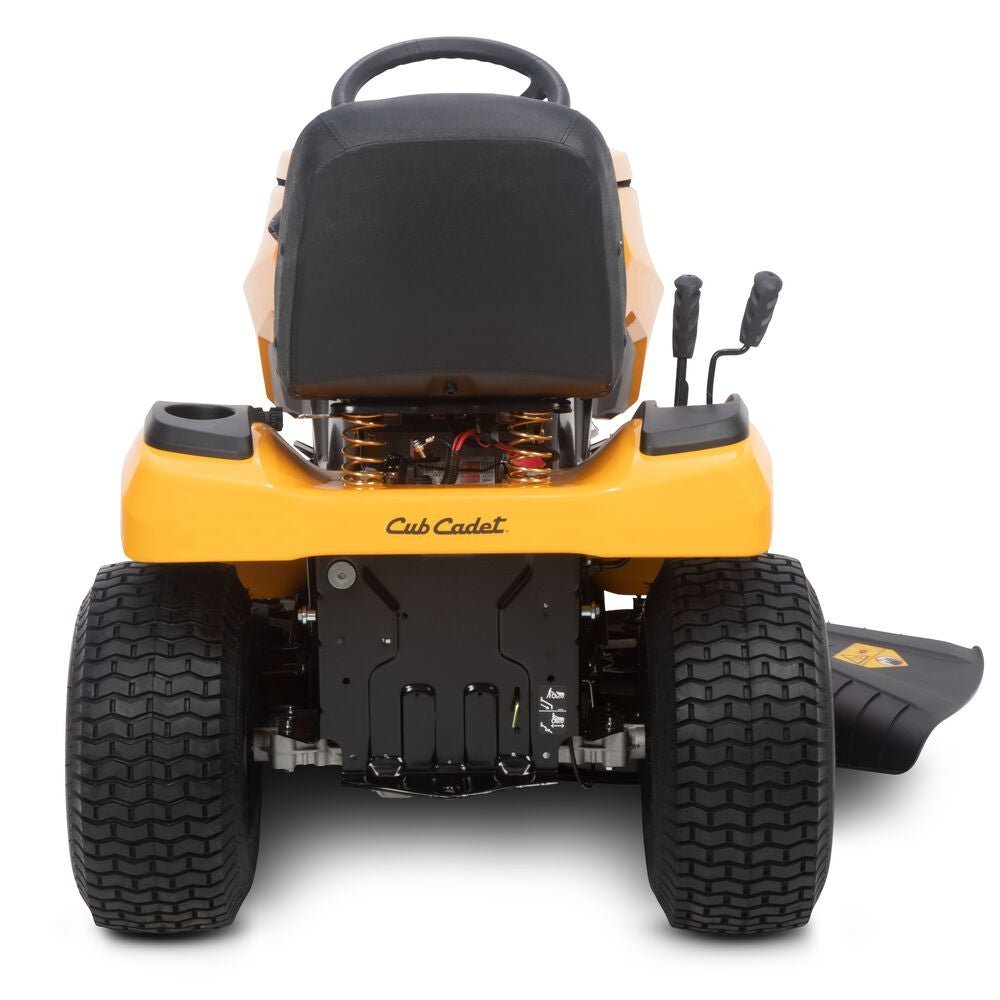

Cub Cadet XT1-LT 42 IP 13A6A9TS010

SET UP AND PREP FEES MAY APPLY
A 547cc Cub Cadet® engine equipped with IntelliPower® technology is designed to deliver reliable power.
42-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope helps provides comfort.
Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
Engine
Engine Brand: Cub Cadet®
Engine Displacement: 547cc
Fuel Tank Capacity: 3.0 gal.
Cylinders/Material: Single
Engine Start: Key
Engine Oil Capacity: 1.8 qts.
Charging System: 15 amp regulated
Fuel Gauge: No
Choke: Choke-a-matic
Oil Filter: Yes
Battery
Battery: 12V 210 cold crank amps
Battery : AGM (Absorbent Glass Mat)
Drive System
Transmission: Hydrostatic, foot
Forward Speed: 5.5 MPH
Reverse Speed: 3.1 MPH
Rear Axle: 3/4″
Transmission Housing: Aluminum
Transmission Type: Tuff Torq TL-200
Rear Wheels: 20″x 8″-8″ Turf Saver
Front Wheels: 15″x 6″-6″ Turf Saver
Cutting Deck
Deck Cutting Width: 42″
Deck Wash: Included
Deck Material: Steel, 13-gauge
Deck Attach/Removal: QuickAttach™ (no tools required)
Deck Engagement (PTO): Manual lever
Deck Construction: Stamped
Blade(s): 2
Deck Lift: Lever
Cutting Height Range: 1″ – 4″
Anti-Scalping: 2 gauge wheels
Deck Positions: 12 positions
Warranty
Warranty: 3-year/unlimited hour warranty
Frame Warranty: 5-year/unlimited hour warranty
Front Axle Warranty: 5-year/unlimited hour warranty
Deck Shell: 3-year unlimited hours
Commercial Warranty: No
Chassis
Frame: Robotically welded
Bumper: No
Front Axle: Cast iron
Turning Radius: 16″
Rear Tow Hitch: Included
Corrosion Protection: Yes
Controls
Cruise Control: Yes
Brakes: Disc
Steering Control: Manual sector and pinion
Comfort
Seat Type: 15″ high-back seat
Armrests: No
Seat Adjustment: Lever
Floor Mats Traction: Rubber
Additional Specifications
Mulch Kit: Available Separately 19A30046100
Hour Meter: Available Separately 490-900-C075
Headlight(s): 2 – LED
Discharge Chute: Included
Cup Holder: Included
Operator Presence System: Included
Bagger: Optional
Model Number: 13A6A9TS010
AIR FILTER: 937-05066
Pre Filter: Included with air filter
ENGINE Oil: 490-000-C044
OIL FILTER: 951-12690
FUEL FILTER: 951-3013
TRANS FLUID: TT-187Q0899000
SPARK PLUG: 951-10292A
DECK BELT: 954-05021
DRIVE BELT: 954-05027B
BLADES ORDER 2: 742P05177
XTREME BLADES: 742P05177A-X
IGNITION KEY: 925-1745A
