Cub Cadet XT1-LT 46 13APA9TTA10

SET UP AND PREP FEES MAY APPLY

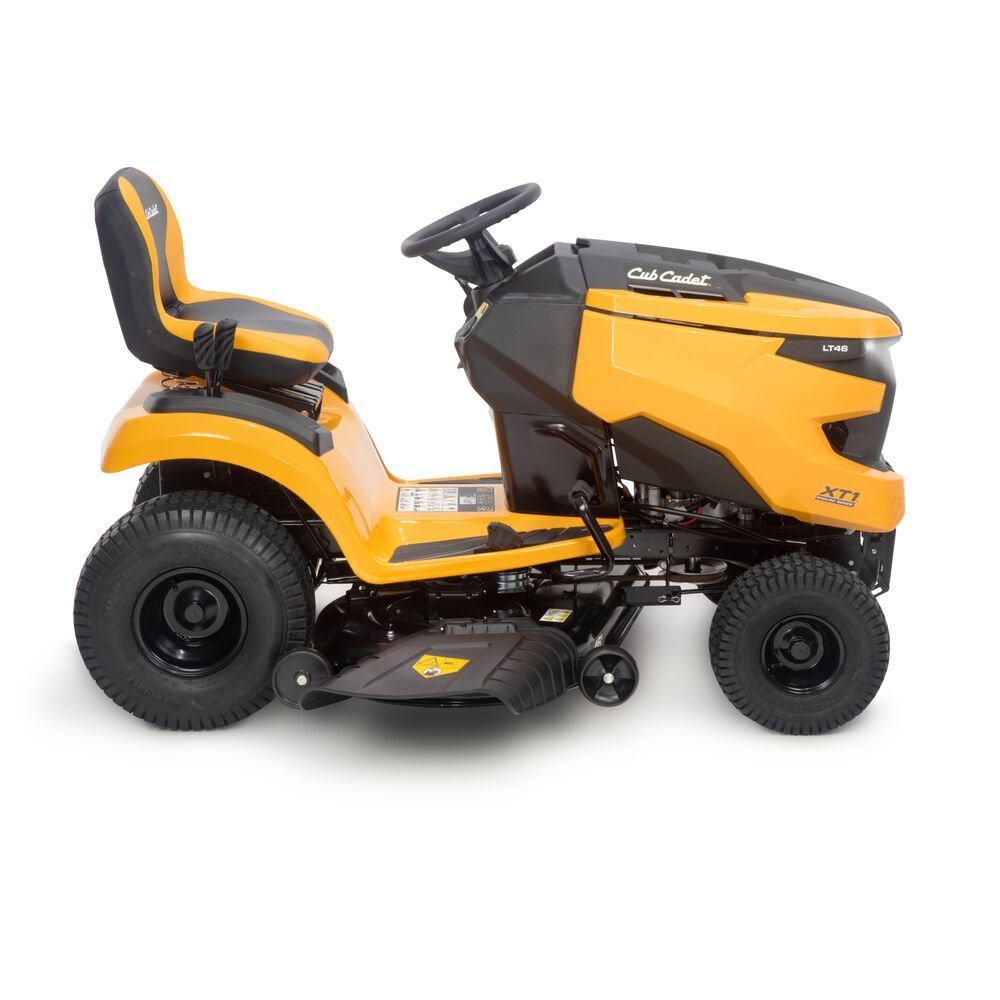

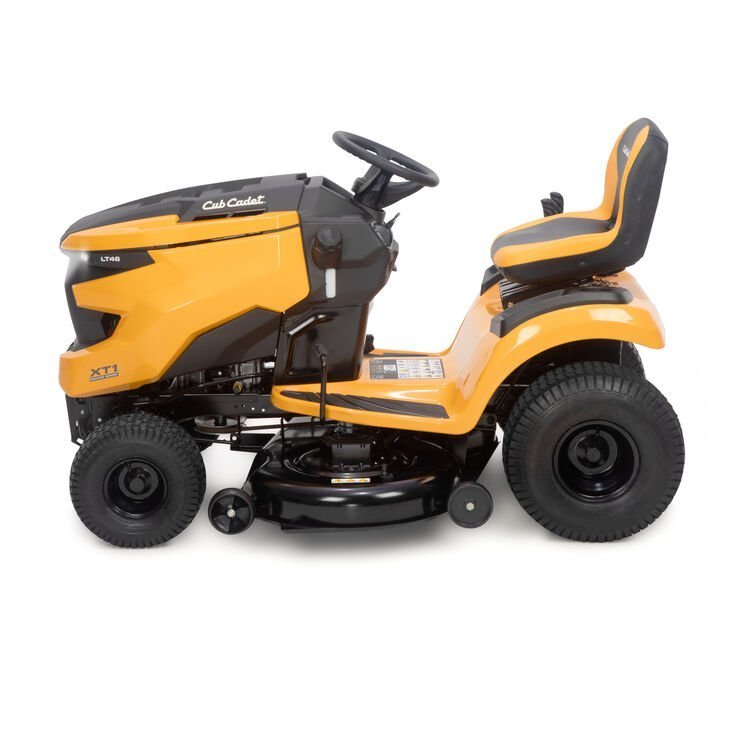

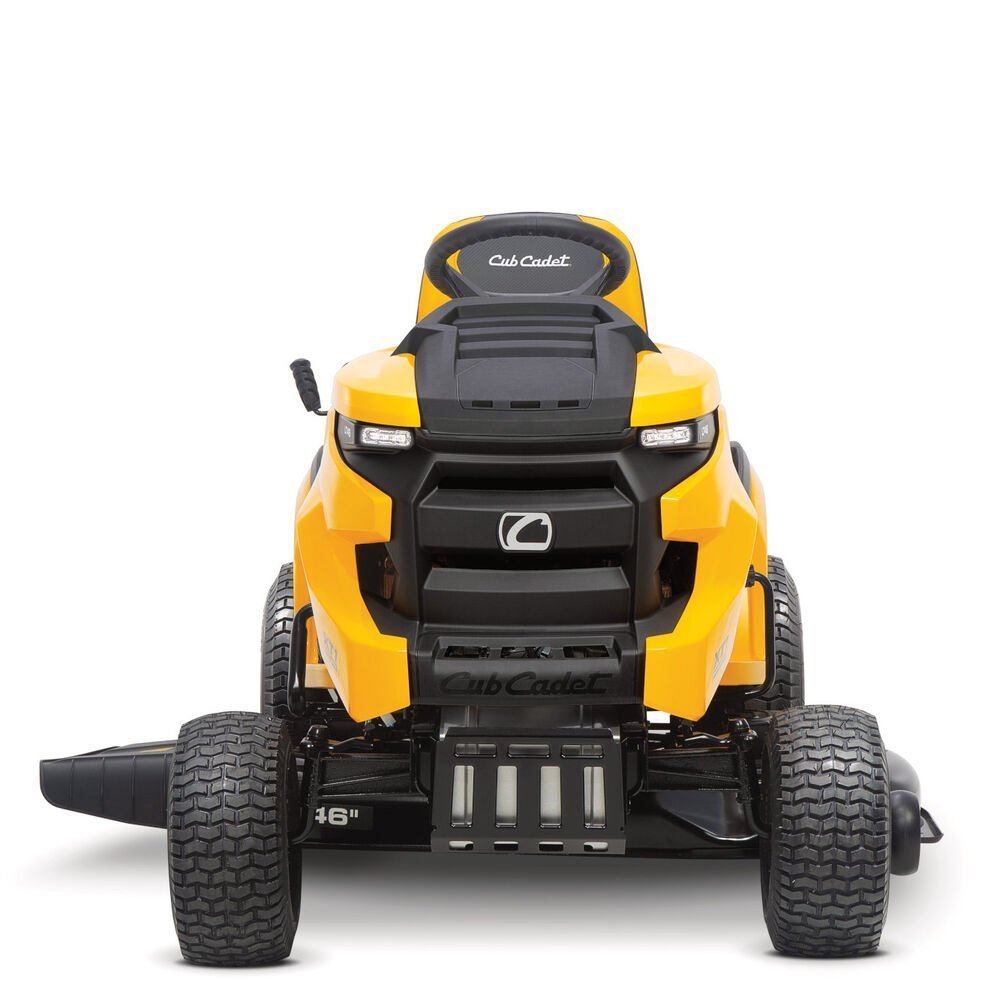

The Cub Cadet XT1 LT46 is powered by a 22 hp KOHLER 7000 Series twin cylinder engine.
46-inch stamped, 12-gauge, twin-blade deck with 12 cutting positions.
Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles.
Engine
Engine Brand: Kohler KT722
Engine Displacement: 747cc
Fuel Tank Capacity: 3.0 gal.
Cylinders/Material: Twin
Engine Start: Key
Engine Oil Capacity: 2 qts.
Charging System: 12 amp regulated
Air Filter: Dual element
Oil Filter: Yes
Battery
Battery: 12V 210 cold crank amps
Battery : Lead Acid
Drive System
Transmission: Tuff Torq® TL-200
Forward Speed: 5.5 MPH
Reverse Speed: 3 MPH
Rear Axle: 3/4″ w/dual PM steel drive hubs
Transmission Housing: Die-Cast Aluminum
Transmission Type: Tuff Torq TL-200
Cutting Deck
Deck Cutting Width: 46″
Cutting Modes: Discharge/mulch/bagging
Deck Wash: Included
Deck Material: Steel, 12-gauge
Deck Attach/Removal: QuickAttach™ (no tools required)
Deck Engagement (PTO): Manual lever
Deck Construction: Stamped
Spindle Construction: 3/4″ with steel cap and Triple Lip Sealed
Blade(s): 2
Deck Lift: Lever
Cutting Height Range: 1″ – 4″
Anti-Scalping: 2 ball, 2 narrow
Deck Positions: 12 positions
Warranty
Warranty: 3-year/unlimited hour warranty
Frame Warranty: 5-year/unlimited hour warranty
Front Axle Warranty: 5-year/unlimited hour warranty
Deck Shell: Lifetime Limited
Chassis
Frame: Robotically welded
Front Axle: Cast iron
Turning Radius: 16″
Rear Tow Hitch: Included
Corrosion Protection: Yes
Controls
Cruise Control: Yes
Brakes: disc
Steering Control: Manual sector and pinion
Display:
Comfort
Seat Type: 15″ high-back seat
Seat Suspension: Seat spring
Arm Rests: No
Floor Mats Traction: Rubber
Additional Specifications
Mulch Kit: Optional
Headlight(s): 2 – LED
Discharge Chute: Included
Cup Holder: Included
Operator Presence System: Included
Bagger: Optional
Model Number: 13APA9TTA10
AIR FILTER: 32 883 09-S1 OR 490-200-K054
OIL FILTER: 12 050 01-S
FUEL FILTER: 25 050 22-S1
SPARK PLUG: 25 132 14-S OR RC12YC
DECK BELT: 954-05022A
DRIVE BELT: 954-05027B
BLADES ORDER 2: 742P05510 OR SET 490-110-C192
XTREME BLADES: 742P05510-X OR SET 490-110-C203
IGNITION KEY: 925-1745A
