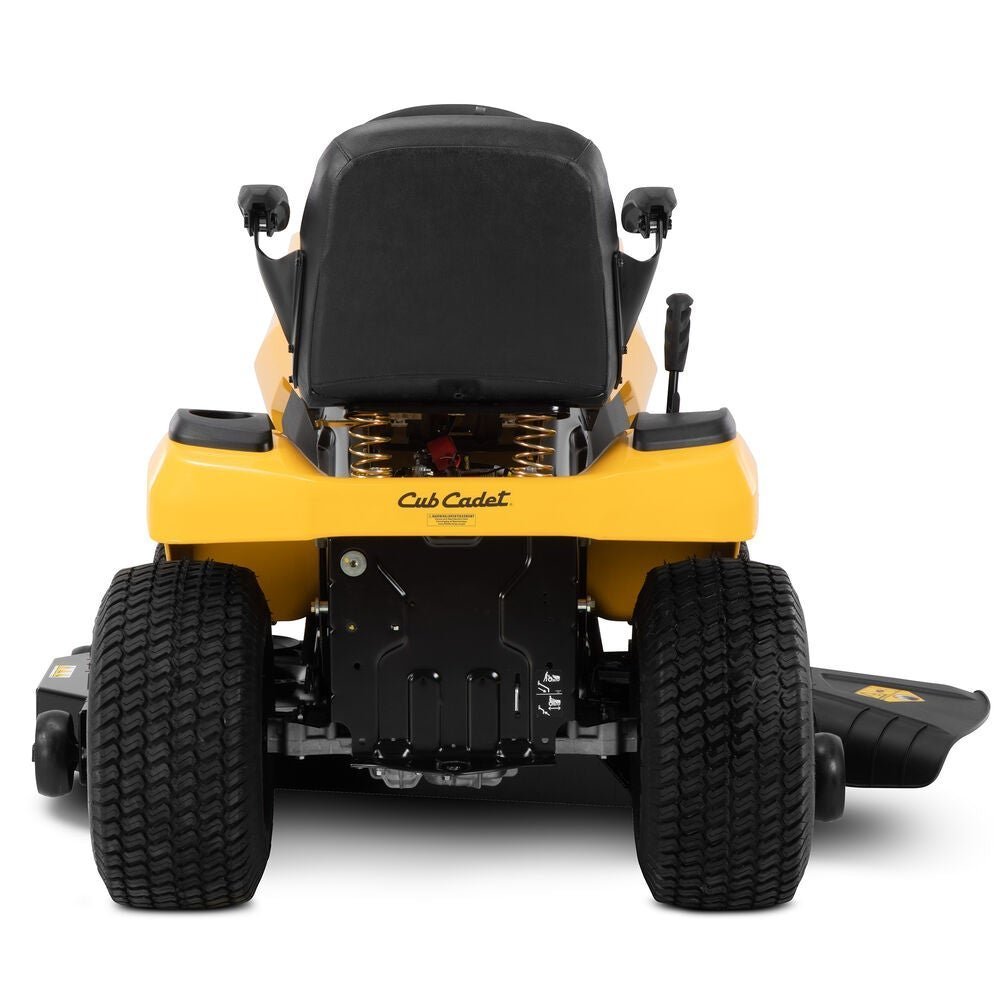

Cub Cadet XT2-LX 46 13APA1TNA10

SET UP AND PREP FEES MAY APPLY
A strong 23 HP Kohler® engine delivers reliable power to tackle your yard.
46-in. heavy-duty fabricated AeroForce™ deck cutting system that has been tested and proven to deliver a best-in-class cut, meaning fewer clumps and stragglers, finer clippings and increased evenness.
Tuff Torq Hydrostatic transmission, no shifting, just push the pedal and go.
Engine
Engine: Kohler KT722-3108
Engine Displacement: 747cc
Fuel Tank Capacity: 3.0 gal.
Cylinders/Material: Twin Cast Iron
Engine Start: Key
Engine Oil Capacity: 2 qts.
Lubrication: Fully pressurized
Battery: 12V 210 cold crank amps
Battery Type: AGM (absorbent Glass Mat)
Charging System: 12 Amp Regulated
Choke: Separate Choke
Oil Filter: Yes
Drive System
Transmission: Hydrostatic, foot
Forward Speed: 5.5 MPH
Reverse Speed: 3 MPH
Rear Axle: 1″
Transmission Housing: Aluminum
Transmission Type: Tuff Torq K46
Cutting Deck
Deck Cutting Width: 46″
Cutting Modes: Discharge/mulch/bagging
Deck Wash: Included
Deck Attach/Removal: QuickAttach™ (no tools required)
Deck Engagement (PTO): Electric
Blade(s): 2
Deck Lift: Manual
Cutting Height Range: 1″ – 4″
Anti-Scalping: 2 ball/2 Narrow
Deck Positions: 12 positions
Chassis
Frame: Robotically welded
Front Axle(s): Heavy duty Cast iron
Turning Radius: 16″
Front Tires: 15″x6″-6″
Rear Tires: 20″x8″-8″
Tire Tread: Multi-Trac
Rear Tow Hitch: Included
Corrosion Protection: E-coating
Controls
Cruise Control: Soft touch engagement
Brakes: Disc
Direction: NEW optimized steering system, manual sector and pinion
Headlight(s): 2 – LED High Illumination
Comfort
Seat Type: Cub Comfort™ high-back seat
Arm Rests: Comfort
Seat Suspension: Seat spring
Seat Adjustment: Lever
Floor Mats: Traction Pad
Seat adj: 10 degree incline and slide
Additional Specifications
Mulch Kit: Optional
Discharge Chute: Included
Cup Holder: Included
Operator Presence System: Included
Bagger: Optional
Hour Meter: Yes
Warranty
Residential Warranty: 3-year/unlimited hour warranty
Frame Warranty: 5-year/unlimited hour warranty
Front Axle Warranty: 5-year/unlimited hour warranty
AIR FILTER: 16 883 04-S1 OR 490-200-K059
OIL FILTER: 52 050 02-S
ENGINE OIL: 25 357 65-S OR 490-000-C044
TRANS FLUID: TT-187Q899000
FUEL FILTER: 24 050 13-S1
SPARK PLUG: 25 132 14-S
DECK BELT: 954-05087A OR 490-501-C077
DRIVE BELT: 954-05027B OR 490-501-C061
BLADES ORDER 2: 742P05510 OR SET 490-110-C192
XTREME BLADES: 742P05510-X OR SET 490-110-C203
IGNITION KEY: 925-1745A
